CLAMP-ON FLOWMETERS FOR POWER GENERATION.

Power generation – The ability to perform flow measurements from the outside of a pipeline while generating electricity from nuclear fission, coal, biogas, wind, solar or hydropower is essential for a power plant. This makes ultrasonic clamp-on flow meters a smart choice for major energy suppliers.

Although the pipes and liquids or gases used in the different processes vary in size and type, power plants have in common that the processes cannot be shut down for flow measurement and control. Regardless of the fact that these inspections take place permanently or temporarily.

OUR SOLUTION. ULTRASONIC CLAMP-ON FLOWMETERS.

  • No pressure drop and no risk of leakage
  • No electric conductivity required
  • Applied externally. No process interruptions
  • Simple and fast installation
  • Cost saving
  • On-site support

The sensors of our ultrasonic clamp-on flow meters are clamped to the outside of the pipe. It is therefore not necessary to open the pipe and shut down the system. This means that there will be no interruption of your flow or production process.

Our ultrasonic flow meters can be mounted on existing and new pipes of almost any material. They are sSuitable for pipes and tubes with diameters ranging from 3 mm to 6500 mm. The clamp-on sensors have a high temperature resistance, making them suitable for use on hot water and condensate pipelines etc. Their temperature range varies from -30 ° C to 600 ° C.  And calibrations or zero flow measurements are NOT required.

Applications :

  • Feed water, cooling water and condensate flow metering
  • Pump, valve and inline flow meter performance verification
  • Leakage and blockage detection
  • Metering of fly ash disposal lines
  • Heavy fuel oil metering
  • CHP monitoring (combined heat and power)

Because the pipe or tube remains intact when mounting of a flow meter, contact with the potentially hazardous contents is avoided. There is no risk of leakage.

The purchase cost are the only cost. While in-line flow meters entail additional costs for engineering, process stoppages, trained personnel and all additional accessories (bolts, gaskets, washers, etc.)

Stator cooling systems
This system’s cooling lines are made from flexible PTFE hoses and have little or no straight pipe lengths. For this reason we have designed a special clamping arrangement to provide reliable measurements, even under these difficult circumstances.

Nuclear power stations
In the nuclear power industry the advantages of non-invasive flow measuring is obvious. The main application for this power source is also for the measurement of cooling liquid flows. Due to the sensitive nature of the nuclear fuels, the possibilities for the shut down of cooling systems for the installation of inline meters is even more restricted than with fuel burning stations. For this reason our clamp-on flow meters are best possible solution.

Hydropower stations
Our clamp-on flowmeters are used in hydropower stations to measure the flows in penstock pipelines. As these lines are generally very large, clamp-on meters are the most cost-effective solution.

KATflow 100 - compacte ultrasone flowtransmitter vaste opstelling | U-F-M b.v.
KATflow 100

Standard fixed installation clamp-on ultrasonic flowmeter

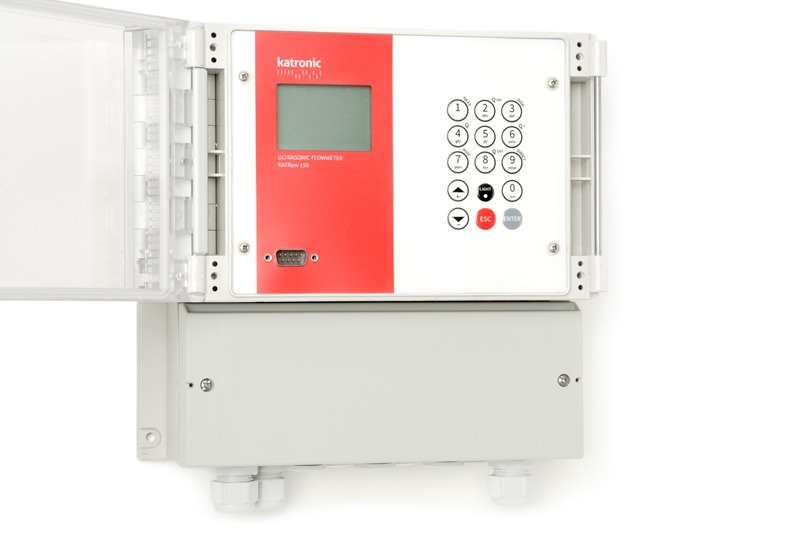

Controle dieselverbruik schepen -KATflow 150 - vaste enkel en dubbelkanaals ultrasone flowmeter | U-F-M b.v.
KATflow 150

Advanced fixed installation clamp-on ultrasonic flowmeter

KATflow 180 G - ultrasone gas flowmeter | U-F-M b.v.
KATflow 180 G

Fixed installation clamp-on ultrasonic flowmeter for gas

KATflow 230 - ultrasone flowmeter in waterdichte koffer | U-F-M b.v.
KATflow 230

Portable clamp-on ultrasonic flowmeter
