RAPID. ACCURATE. SAFE.

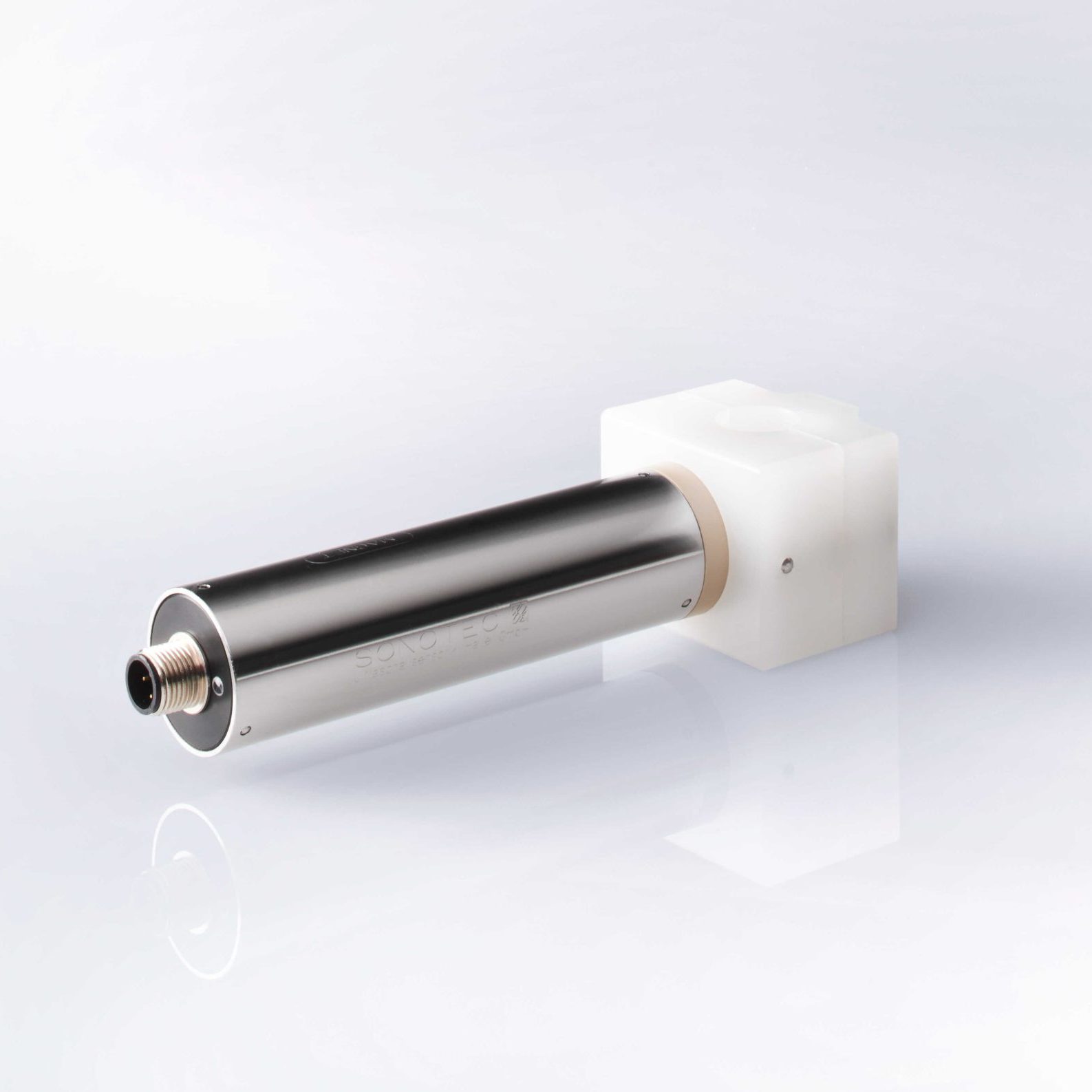

SONOCONTROL 15 – The ultrasonic level switch is designed to detect with speed and precision whether or not a pipe is filled with liquid or liquefied gas. As soon as the pipe’s detection point is filled, the sensor ensures safe switching.

The compact non-invasive sensor measures through the pipe wall and is particularly suited to applications within the pharmaceutical and fine chemical industries. For example to protect pumps and monitor filling machines.

Within the pharmaceutical industry, the SONOCONTROL 15 by Sonotec serves as a limit switch that detects whether a pipe with a small nominal diameter is full or empty.

The switch is simply placed (sideways) on the outside of the tube or pipe without interrupting the flow process. This prevents leakage problems. After a successful ‘teach-in’, the sensor distinguishes liquid and gas / air. The detection point must be set up on the vertical pipe to ensure that the switch function works properly at a half full pipe.

The two-wired system’s simplified installation method ensures optimal use. Thanks to the plastic mounting system, the sensor can be slid back and forth quickly and easily.

OPTIONAL : Compact level switch for potentially explosive environments : SONOCONTROL 15 EX.

  • Easy installation on the pipe’s exterior
  • Retrofit without process interruption
  • Low total costs since no process connections are required
  • Short response time
  • No wear
  • Quick Boot
  • SONOCONTROL 14 EX: version for use in hazardous areas – Optional

  • Measurement method : ultrasound
  • Mounting : PVDF clamp + coupling medium
  • Pipe material : Inside : steel, stainless steel, plastic, glass | Exterior : metallic polished or lacquer
  • Medium : Water or aqueous liquids with a low concentration of air / gas bubbles
  • Temperature range : Pipe -40 ° C ~ 140 ° C | Environment -40 ° C ~ 80 ° C | Storage -40 ° C ~ 85 ° C
  • Power supply for standard version : 12 – 40 VDC | Max. 22 mA, max., max. ripple 5% | Peak value : max. 40V
  • Power supply for (AT) Ex version : 12 – 33 VDC | Max. 22 mA, max. ripple 5% | Peak value: max. 33 V.
  • Output : Condition is shown by the current draw from the sensor. 2 LED indicators are located in the housing
  • Connections : 4-pin M12 connection (2 contacts connected)
  • Protection : IP67, water and oil resistant
  • Ex protection : II2G Ex ib IIC T6 Gb – Optional
  • Housing : Stainless steel and plastic (PEEK)
  • Dimensions (without mounting) : L = 125 mm, Ø = 30 mm
  • Maintenance : None

Download the SONOCONTRAOL 15 / 15 EX datasheet

  • Pharmacy
  • Fine chemicals
